DID-E2

DID-E2-*-VC with supply air grille and extract air grille

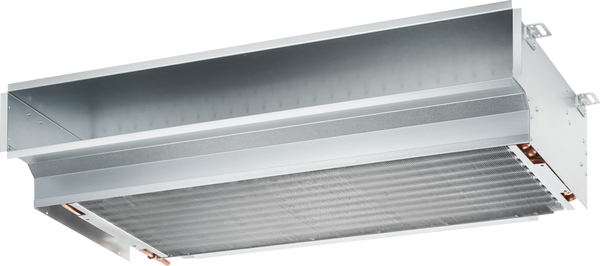

Front view with nozzles

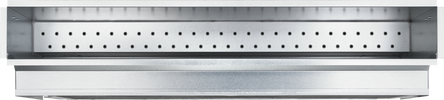

DID-E2 without accessories and useful additions

AH-0-A

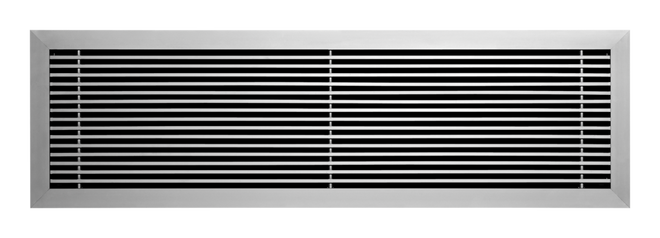

Induction and supply air grilles from the TROX grille programme

Water connections with control components

Eurovent certification

DID-E2

Active chilled beam with one-way air discharge as a low-noise alternative to fan coil units; choice of two heat exchanger variants for different output ranges.

Active chilled beams for heating and cooling with 2- or 4-pipe heat exchangers for installation in ceiling bulkheads, e.g. in hotel rooms and hospital wards, in the nominal lengths of 1000, 1125 and 1250 mm

Preferably for room heights up to 4.00 m
High heating and cooling capacity with a low conditioned primary air volume flow rate and low sound power level
Media supply on the reverse or from the corridor side
Compact device dimensions oriented to the basic dimensions and 2 different widths or depths for the heat exchanger to cover different output ranges.
Fixing points for various types of suspension systems/points
Combination with different control systems, e.g. X-AIRCONTROL or air-water systems control possible

Optional equipment and accessories

Integrated volume flow controller
Standard grilles from the TROX grille range
Various water connections, smooth CU tube, external thread G1/2" and flat seal, or union nut G1/2" and flat seal
The supply air spigot is extendable (sliding) to compensate for structural tolerances

General information

Application

Active chilled beams of Type DID-E2 for installation into ceiling bulkheads, preferably for room heights up to 4.00 m
Especially for hotel rooms and hospital wards
Load dissipation with water enables a reduction of the primary air flow rate to the required minimum outdoor air flow rate
2-pipe or 4-pipe heat exchangers enable good comfort levels with a low conditioned primary air volume flow rate
Energy-efficient solution, as water is used for heating and cooling

Special characteristics

One-way air discharge
Horizontal heat exchanger as 2-pipe or 4-pipe system
Connections on the rear of the unit, so that the connection is usually made from the corridor side
The supply air spigot is extendable (sliding) to compensate for structural tolerances
Nominal sizes are based on the basic dimensions
Integrated volume flow controller as an option

Nominal sizes

1000, 1125, 1250 mm

Variants

Water connection

Position right (-R) or left (-L)
Smooth copper tube Ø12 mm
A1: external thread G½”, with flat seal
A2: union nut G½”, with flat seal

Heat exchanger

2: 2-pipe systems
4: 4-pipe systems

Nozzle variants

HE: small
S1: medium
S2: large
HP: extra large
H2: nozzle mix (50 % S2 nozzle and 50 % HP nozzle)

Other nozzle mixes available on request.

Attachments

VC: Integrated flow rate control unit

Accessories

Z: Sliding spigot for the supply air (if a supply air grille with concealed screw fixing is used, a sliding spigot for supply air is mandatory).
ERS: Installation subframe for secondary air grille

Useful additions

Connecting hoses Type FS
Air-water system control equipment consisting of a room control panel with integrated room temperature sensor including controller, valves and valve actuators; and lockshields.

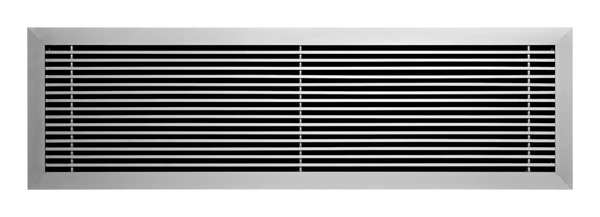

Ventilation grille for supply air and secondary air from the TROX grille product range
Control system X-AIRCONTROL for water-side and air-side control, with the option of a connection to the MCE
For further information on the X-AIRCONTROL and for information relevant to design, please refer to the installation and operating manual.

Construction features

Spigot is suitable for circular air ducts according to EN 1506 or EN 13180
5 nozzle variants for optimised induction, as required
Side-mounted brackets for installation with various fixing systems
A mixture of nozzles is possible
Devices without flow rate control unit have a central primary air connection. Devices with a flow rate control unit have a primary air connection on the left or right

Materials and surfaces

Casing, nozzle plate, supply air spigot and installation subframe for secondary air grille made of galvanised sheet steel
Heat exchanger with copper tubes and aluminium fins
Surface of the casing and heat exchanger optionally available in black (RAL 9005)

Standards and guidelines

Products are certified by Eurovent no. 09.12.432 and listed on the Eurovent website
Declaration of hygiene conformity according to VDI 6022
Sound power level of the air-regenerated noise measured according to EN ISO 5135.

Maintenance

Variants without flow rate control unit (VC) are lowmaintenance, as there are no moving parts. The flow rate control unit can be accessed via a separate casing cover for maintenance purposes
The heat exchanger can be vacuumed with an industrial vacuum cleaner, if necessary
VDI 6022, Part 1, applies (Hygiene requirements for ventilation and air-conditioning systems and units)

Información técnica

Function, Quick sizing, Specification text, Order code

Schematic illustration of DID-E2

1 Primary air spigot
2 Unit casing
3 Fixing brackets
4 Supply opening
5 Water connection (tube diameter 12 mm)
6 Heat exchanger

Active chilled beams provide centrally conditioned primary air (outdoor air) to the room and use heat exchangers for additional cooling and/or heating. The primary air flows through the nozzles into the mixing chamber, inducing secondary air which flows out of the room, through the induced air grille and the horizontal heat exchanger. Primary and secondary airflows mix and are then supplied to the room horizontally through the supply air grille.

The quick sizing table contains operating points for defined reference units, whereby the data applies for devices without flow rate control units (VC). Further operating points can be calculated using our Easy Product Finder design programme

Quick sizing heat exchanger width 320 mm and primary air spigot diameter 123 mm

L_N	1	Primärluft			2	Kühlen				Heizen
		q_vPr [l/s]	q_vPr [m³/h]	Δp_t [Pa]	L_WA [dB(A)]	2- und 4-Leiter-System				4-Leiter-System
		q_vPr [l/s]	q_vPr [m³/h]	Δp_t [Pa]	L_WA [dB(A)]	Q_ges [W]	Q_WK [W]	Δt_W [K]	Δp_w [kPa]	Q_ges = Q_W [W]	Δt_W [K]	Δp_w [kPa]
1000	HE	8	29	56	<15	406	309	2,4	2,1	456	7,8	0,1
1000	HE	14	50	167	27	635	468	3,7	2,1	600	10,3	0,1
1000	S1	10	37	37	<15	427	303	2,4	2,1	456	7,9	0,1
1000	S1	21	76	157	26	770	515	4	2,1	635	10,9	0,1
1000	S2	12	43	23	<15	415	272	2,1	2,1	435	7,5	0,1
1000	S2	30	108	146	29	907	546	4,3	2,1	654	11,2	0,1
1000	HP	17	61	22	<15	485	280	2,2	2,1	453	7,8	0,1
1000	HP	43	155	144	37	1083	564	4,4	2,1	674	11,6	0,1
1000	H2	14	50	21	<15	433	266	2,1	2,1	444	7,6	0,1
1000	H2	37	133	148	33	1012	567	4,4	2,1	671	11,5	0,1
1125	HE	9	33	67	<15	406	346	2,7	2,4	508	8,7	0,1
1125	HE	15	53	172	26	674	497	3,9	2,4	643	11,1	0,1
1125	S1	12	43	44	<15	492	348	2,7	2,4	514	8,8	0,1
1125	S1	23	83	162	27	835	557	4,4	2,4	690	11,9	0,1
1125	S2	13	47	23	<15	448	291	2,3	2,4	473	8,1	0,1
1125	S2	33	118	146	29	984	590	4,6	2,4	711	12,2	0,1
1125	HP	19	68	22	<15	535	308	2,4	2,4	498	8,6	0,1
1125	HP	48	174	145	39	1199	617	4,8	2,4	738	12,7	0,1
1125	H2	16	58	22	<15	501	307	2,4	2,4	500	8,6	0,1
1125	H2	41	148	144	37	1113	617	4,8	2,4	733	12,6	0,1
1250	HE	11	39	69	<15	532	401	3,1	2,7	574	9,9	0,1
1250	HE	17	62	173	29	764	557	4,4	2,7	714	12,3	0,1
1250	S1	13	47	38	<15	532	374	2,9	2,7	556	9,6	0,1
1250	S1	26	94	154	28	925	610	4,8	2,7	754	13	0,1
1250	S2	15	54	24	<15	513	333	2,6	2,7	528	9,1	0,1
1250	S2	37	132	146	30	1082	641	5	2,7	773	13,3	0,1
1250	HP	21	75	22	<15	585	334	2,6	2,7	542	9,3	0,1
1250	HP	54	194	145	41	1318	669	5,2	2,7	801	13,8	0,1
1250	H2	18	65	23	<15	558	340	2,7	2,7	549	9,4	0,1
1250	H2	45	162	144	35	1206	664	5,2	2,7	791	13,6	0,1

1 Nozzle type
2 Air-regenerated noise

Reference values

Parameter	Kühlen	Heizen
t_R	26 °C	22 °C
t_Pr	16 °C	22 °C
t_WV	16 °C	50 °C
q_vW	110 l/h	50 l/h

Quick sizing heat exchanger width 512 mm and primary air spigot diameter 158 mm

L_N	1	Primärluft			2	Kühlen				Heizen
		q_vPr [l/s]	q_vPr [m³/h]	Δp_t [Pa]	L_WA [dB(A)]	2- und 4-Leiter-System				4-Leiter-System
		q_vPr [l/s]	q_vPr [m³/h]	Δp_t [Pa]	L_WA [dB(A)]	Q_ges [W]	Q_WK [W]	Δt_W [K]	Δp_w [kPa]	Q_ges = Q_W [W]	Δt_W [K]	Δp_w [kPa]
1000	HE	9	32	75	<15	549	442	3,5	3,5	569	9,8	0,1
1000	HE	14	50	183	26	761	593	4,6	3,5	704	12,1	0,1
1000	S1	12	43	51	<15	591	447	3,5	3,5	584	10,1	0,1
1000	S1	21	76	160	27	920	665	5,2	3,5	774	13,3	0,1
1000	S2	13	47	28	<15	527	370	2,9	3,5	499	8,6	0,1
1000	S2	30	108	148	28	1075	714	5,6	3,5	804	13,8	0,1
1000	HP	18	65	24	<15	593	375	2,9	3,5	547	9,4	0,1
1000	HP	45	162	148	35	1293	751	5,9	3,5	868	14,9	0,1
1000	H2	15	54	24	<15	531	350	2,7	3,5	511	8,8	0,1
1000	H2	38	137	152	32	1207	748	5,9	3,5	838	14,4	0,1
1125	HE	10	36	78	<15	607	486	3,8	3,9	627	10,8	0,2
1125	HE	15	54	177	26	816	635	5	3,9	759	13,1	0,2
1125	S1	13	47	50	<15	636	478	3,7	3,9	632	10,9	0,2
1125	S1	24	86	167	27	1015	727	5,7	3,9	848	14,6	0,2
1125	S2	14	50	25	<15	546	378	3	3,9	526	9	0,2
1125	S2	34	122	150	29	1186	777	6,1	3,9	879	15,1	0,2
1125	HP	20	72	24	<15	647	406	3,2	3,9	596	10,3	0,2
1125	HP	50	180	148	36	1413	811	6,3	3,9	941	16,2	0,2
1125	H2	17	61	24	<15	594	389	3	3,9	566	9,7	0,2
1125	H2	42	151	149	32	1310	805	6,3	3,9	906	15,6	0,2
1250	HE	11	40	74	<15	663	529	4,1	4,3	682	11,7	0,2
1250	HE	17	62	177	26	906	698	5,5	4,3	833	14,3	0,2
1250	S1	15	54	51	<15	718	537	4,2	4,3	701	12,1	0,2
1250	S1	27	97	164	28	1113	789	6,2	4,3	921	15,8	0,2
1250	S2	16	58	28	<15	633	439	3,4	4,3	595	10,8	0,2
1250	S2	37	135	143	30	1273	828	6,5	4,3	941	16,2	0,2
1250	HP	22	80	22	<15	711	444	3,5	4,3	649	11,2	0,2
1250	HP	57	205	147	38	1565	879	6,9	4,3	1021	17,6	0,2
1250	H2	19	68	24	<15	655	427	3,3	4,3	618	10,6	0,2
1250	H2	47	170	147	34	1438	869	6,8	4,3	981	16,9	0,2

1 Nozzle type
2 Air-regenerated noise

Reference values

Parameter	Kühlen	Heizen
t_R	26 °C	22 °C
t_Pr	16 °C	22 °C
t_WV	16 °C	50 °C
q_vW	110 l/h	50 l/h

This specification text describes the general properties of the product. Texts for variants can be generated with our Easy Product
Finder design programme.

Specification text

Active chilled beams of Type DID-E2 with one-way air discharge, are a low-noise alternative to fan coil units, providing high thermal output and high thermal comfort levels. For installation into ceiling bulkheads, preferably in rooms with a height up to 4.00 m. The units consist of a casing with suspension points, a spigot, non-combustible nozzles, and a horizontal heat exchanger. 5 nozzle variants for customised, optimal induction.

Special characteristics

One-way air discharge
Horizontal heat exchanger as 2-pipe or 4-pipe system
Connections on the rear of the unit, so that the connection is usually made from the corridor side
The supply air spigot is extendable (sliding) to compensate for structural tolerances
Nominal sizes are based on the basic dimensions
Integrated volume flow controller as an option

Materials and surfaces

Casing, nozzle plate, supply air spigot and installation subframe for secondary air grille made of galvanised sheet steel
Heat exchanger with copper tubes and aluminium fins
Surface of the casing and heat exchanger optionally available in black (RAL 9005)

Technical data

Nominal length: 1000, 1125, 1250 mm
Length: 1000, 1125, 1250 mm
Width: 519, 616, 711, 808 mm
Height: 207, 212 mm
Diameter primary air spigot: 123, 158 mm
Primary air volume flow rate: 8 – 57 l/s or 29 – 205 m³/h
Cooling capacity: up to 1600 W
Heating capacity: up to 1000 W
Maximum operating pressure, water side: 10 bar (in combination with connection hoses 6 bar)
Maximum operating temperature: 75 °C (in combination with connection hoses 55 °C)

Sizing data

Primary air

qv [m³/h]
Δpt [Pa]

Air-regenerated noise

LWA [dB(A)]

Cooling

Qtotal [W]

Heating

Qtotal [W]

DID-E2

DID-E2

–

1000 × 512 × 123

ERS

1 SerieDID-E2 Viga fría activa 2 Batería2 2-tubos4 4-tubos 3 Variantes de toberaHE PequeñaS1 MedianaS2 GrandeHP Extra grandeH2 Tobera mixta (50 % tobera S2 y 50 % tobera HP 4 Disposición de las conexiones hidráulicasR Lado derechoLI Lado izquierdo 5 Conexiones hidráulicasSin código: tubo plano Ø12 mmA1 Con rosca macho G½" y junta planaA2 Con rosca hembra G½" y junta plana 6 Tamaño nominal x anchura de batería x boca para aire primario [mm]1000 × 320 × 123 Para integración en tamaño 1000 mm1000 × 512 × 158 Para integración en tamaño 1000 mm1125 × 320 × 123 Para integración en tamaño 1125 mm1125 × 512 × 158 Para integración en tamaño 1125 mm1250 × 320 × 123 Para integración en tamaño 1250 mm1250 × 512 × 158 Para integración en tamaño 1250 mm 7 Regulación del caudal de aireSin entrada: SinVC Componente de control preinstalado 8 Boca para retorno de aireSin entrada: SinZ Con cuello de prolongación para el aire de impulsión 9 Marco de montaje para rejilla de aireSin entrada: SinERS Marco de montaje para la rejilla de aire secundario 10 Acabado de la carcasa y la bateríaSin código: acabado en bruto, chapa de acero galvanizado - batería, tubos de cobre y aletas de aluminioG1 Acabado similar negro RAL 9005

DID-E-2-G-RE/900×256DID-E-2-G-RE/900×256

Batería	2-tubos
Variante de tobera	Grande
Disposición de las conexiones hidráulicas	Lado derecho
Longitud nominal × anchura de batería	900 × 256 mm

,
Control components

KV	–	0.63	/	HV	–	0.40	/	R
\|		\|		\|		\|		\|
1		2		3		4		5

1 Cooling valve
No entry: without cooling valve
KV with cooling valve and actuator

2 K_vsvalue cooling valve
0.25, 0.40, 0.63, 1.00

3 Heating valve
No entry: without heating valve
HV with heating valve and actuator

4 K_vsvalue heating valve
0.25, 0.40, 0.63, 1.00

5 Lockshield
No entry: without lockshield
R with lockshield (K_vs value 1.32)Order example: KV-0.63/HV-0.40/R/VS

Product	Cooling valve and actuator
k_VS value – cooling valve	0.63
Heating valve	With heating valve and actuator
k_VS value – heating valve	0.40
Lockshield	With lockshield (k_Vs value 1.32)

, Secondary air grille

AH-0	/	925 × 525	/	VS	/	P1-RAL 9016
\|		\|		\|		\|
1		2		3		4

1 Product
No entry: without secondary air grille (air intake through shadow gap)
X-GRILLE-Cover

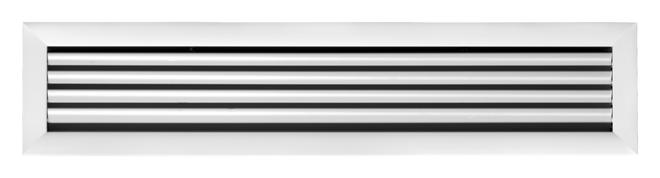

X-GRILLE-Basic
AH-0
SL
TRS
LB Perforated plate, 50 % free area

2 Nominal size [mm]
Nominal length × nominal height
925 × 345 (unit size 1000 × 320)
925 × 525 (unit size 1000 × 512)
1050 × 345 (unit size 1125 × 320)
1050 × 525 (unit size 1125 × 512)
1175 × 345 (unit size 1250 × 320)
1175 × 525 (unit size 1250 × 512)

3 Fixing
No entry: no fixing (applies only to X-GRILLE-Cover and TRS)
A11 Countersunk holes (only AH-0)
VS With concealed screw fixing

4 Surface
No entry: standard finish of the grille
P1 Powder-coated, specify RAL CLASSIC colour
P2 Powder-coating of cover plates, specify RAL CLASSIC colour (applies only to X-GRILLE-Cover)
Order example: AH-0/925×525/VS/P1-RAL9016

Product	AH-0
Nominal size [mm]	Nominal length 925, nominal height 525
Fixing	With concealed screw fixing
Surface	Powder-coated, RAL 9016 (traffic white)

, Supply air grille

AH-0	/	925 × 125	/	VS	/	P1-RAL 9016
\|		\|		\|		\|
1		2		3		4

1 Product
No entry: without supply air grille
X-GRILLE-Cover
X-GRILLE-Basic
SL
TRS

2 Nominal size [mm]
Nominal length × nominal height
925 × 125 (with unit length 1000)
1050 × 125 (with unit length 1125)
1175 × 125 (with unit length 1250)

3 Fixing
No entry: no fixing (applies only to X-GRILLE-Cover and TRS)
A11 Countersunk holes (only AH-0)
VS With concealed screw fixing

4 Surface
No entry: standard finish of the grille
P1 Powder-coated, specify RAL CLASSIC colour
P2 Powder-coating of cover plates, specify RAL CLASSIC colour (applies only to X-GRILLE-Cover)
Order example: AH-0/925×525/VS/P1-RAL9016

Product	AH-0
Nominal size [mm]	Nominal length 925, nominal height 525
Fixing	With concealed screw fixing
Surface	Powder-coated, RAL 9016 (traffic white)

Variants, Product details

Installation and commissioning

Preferably for clear room heights up to 4.00 m
Installation into ceiling bulkheads
Horizontal primary air connection
Lengths fit basic dimensions 1000, 1125 and 1250 mm
Heat exchanger depths 320 mm and 512 mm
Primary air spigot 123 mm and 158 mm
Installation and connections to be performed by others. Fixing, connecting and sealing material not included
Active chilled beam has 4 suspension points (slotted hole 38 x 8.5 mm) for on-site installation (by others)
Heat exchangers are fitted with water flow and water return connections at the rear, usually towards the corridor
With the optionally available supply air spigot, which works like a sliding spigot, installation areas of 38 – 78 mm are bridged
Secondary air can be drawn in via a ventilation grille from the TROX grille range, the perforated metal plate especially developed for the DID-E2, or through an on-site opening or shadow gap
Secondary air grills must be secured with safety cables. The optionally available installation subframe for secondary air grilles has safety cables that can be mounted on the grille

Descargas

Información sobre el producto

Impresión web DID-E2
Product data sheet Type DID-E2

DID-E2_PD_2018_10_DE_en Product data sheet 2 MB pdf

Certificados

Declaration of hygiene conformity Type DID-E2

DID-E2_HC_2020_06_22_DE_en Hygiene certificate 1,7 MB pdf
EUROVENT certificate

Eurovent_ChilledBeams_CE_2020_09_DE_en_fr Certificate 160 KB pdf
Eurovent Certita Certification Active and Passive Chilled Beams

Active-and-Passive-Chilled-Beams_CE_EUROVENT_09.12.432_2023_09_DE_en_fr Certificate 200 KB pdf
Non-CE Manufacturer's statement DID-e2

DID-E2_NotCE_2022_02_08_14_12_53_DE_en Certificate 1,7 MB pdf

Manuales de funcionamiento

Installation manual

DID-E2_IM_A00000075523_2021_08_V2_GB_en Installation manual 620 KB pdf

Al hacer clic en el botón, nos permite brindarle una excelente experiencia en el sitio web y que los procesos de compra sean más sencillos. Estas cookies incluyen aquellas que son necesarias para el funcionamiento del sitio y para el control de nuestros servicios y aplicaciones, así como los que se utilizan únicamente con fines estadísticos, para configuraciones de conveniencia o para mostrar contenido personalizado. Puede decidir qué categorías desea permitir y puede ajustar la configuración de uso de datos según sus requisitos individuales. Tenga en cuenta que, según la configuración que haya seleccionado, es posible que no todas las funciones de la página estén disponibles. Puede cambiar su selección en cualquier momento.

TÉCNICAMENTE NECESARIO

Estas cookies son necesarias para el correcto funcionamiento de nuestro sitio web y no se pueden desactivar. Como regla general, estas cookies se configuran solo en respuesta a las acciones realizadas por usted, como configurar sus preferencias de privacidad o llenar el carrito de compras. Además, se integran funcionalidades relevantes para la seguridad o soporte a través de un chat web dedicado, incluidas todas las cookies de sesión de TROX establecidas después de iniciar sesión como cliente. Puedes configurar tu navegador para bloquear estas cookies o notificarle sobre ellas. Sin embargo, como resultado, es posible que algunas áreas del sitio web no funcionen según lo previsto.

DID-E2

Active chilled beam with one-way air discharge as a low-noise alternative to fan coil units; choice of two heat exchanger variants for different output ranges.

General information

Información técnica

Function, Quick sizing, Specification text, Order code

Variants, Product details

Descargas

Información sobre el producto

Impresión web DID-E2

Product data sheet Type DID-E2

Certificados

Declaration of hygiene conformity Type DID-E2

EUROVENT certificate

Eurovent Certita Certification Active and Passive Chilled Beams

Non-CE Manufacturer's statement DID-e2

Manuales de funcionamiento

Installation manual

TÉCNICAMENTE NECESARIO

ESTADÍSTICAS Y ANÁLISIS DEL SITIO WEB

CONVENIENCIA Y PERSONALIZACIÓN

PARA LA MEJOR EXPERIENCIA TROX
