Application
Special characteristics
Variants
Parts and characteristics
System requirements
PC or notebook
Licensing

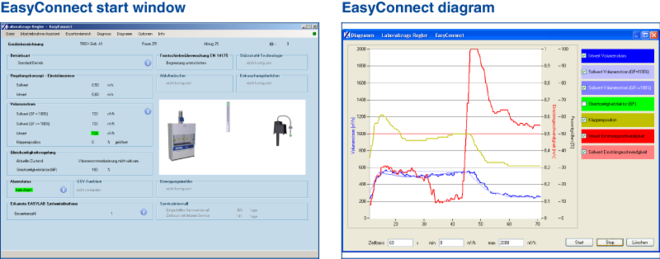

The software displays values, parameters and functions on a graphical user interface (GUI). The software automatically recognises the controller type and displays the corresponding operating values and parameters
It is possible to define different user groups with limited access to functions (defined by licence code). The software supports several levels of access rights.
Standard description (characteristics)
PC software for the configuration and diagnosis of fume cupboard controllers, supply air controllers, extract air controllers, and the EASYLAB adapter module.
The configuration programme is used to configure devices and the check their function. The software provides extensive functions for functional testing and fault diagnosis.
The software can be installed and runs on any personal computer or notebook with Microsoft Windows XP (SP3 or higher), Windows Vista or Windows 7.
Communication is via serial RS485 interface. It only requires that the supplied USB–RS485 interface adapter is connected to the personal computer or notebook. The required communication cable is part of the supply package. The cable can be connected to the EASYLAB fume cupboard or room control panel, or to the device which is to be configured.
Special characteristics
