Unidades terminales VAV

Product Finder

layer

Type TVLK

Plastic circular VAV terminal units for aggressive extract air in laboratories and pro duction facilities

  • Casing and damper blade made of flame-resistant polypropylene
  • Compact construction, only 400 mm long
  • High control accuracy even in case of unfavourable upstream conditions
  • Combination with fast-running actuators (air management systems)
  • Volume flow rate measurement with bluff body or Venturi nozzle
  • Slide-out differential pressure sensor allows for easy leaning
  • Closed blade air leakage to EN 1751, class 4
  • Casing air leakage to EN 1751, class C
Optional equipment and accessories
  • With flanges on both ends
  • Plastic secondary silencer Type CAK for the reduction  of air-regenerated noise

leer más

layer

Type TVRK



Plastic circular VAV terminal units for aggressive extract air in variable air volume systems

  • Casing and damper blade made of flame-resistant polypropylene
  • Slide-out differential pressure sensor allows for easy cleaning
  • Suitable for the control of volume flow rate, room pressure or duct pressure
  • Electronic control components for different applications (Universal and LABCONTROL)
  • Suitable for airflow velocities up to 13 m/s
  • Closed blade air leakage to EN 1751, class 3
  • Casing air leakage to EN 1751, class B


Optional equipment and accessories

  • With flanges on both ends
  • Matching flanges for both ends
  • Plastic secondary silencer Type CAK for the reduction of air-regenerated noise

leer más

layer

Type TVR-Ex



Circular VAV terminal units for variable air volume systems, approved and certified for potentially explosive atmospheres (ATEX)

  • ATEX-compliant construction and parts
  • Approved for all gases, mists and vapours in zones 1 and 2, with electronic control additionally for dusts in zones 21 and 22
  • Suitable for the control of supply or extract air as well as for differential pressure control
  • Electronic or pneumatic control components
  • Closed blade air leakage to EN 1751, class 4
  • Casing air leakage to EN 1751, class C


Optional equipment and accessories

  • Spring return actuator
  • Auxiliary switch with adjustable switching points for capturing the end positions

leer más

layer

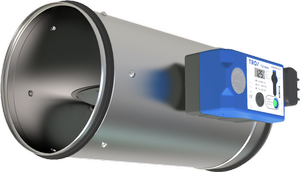

TVE

Circular air terminal unit for use in variable air volume systems at low airflow velocities even under unfavourable upstream conditions





  • Effective tubeless pressure monitoring via damper blade
  • Effective pressure transmission through pressure channel in shaft
  • Terminals with protective cover – no junction boxes required
  • Any direction of flow with dynamic transducer
  • Suitable for airflow velocity of 0.5 – 13 m/s
  • Compact dimensions for use in confined ceiling areas
  • Plug-and-play solution in conjunction with X-AIRCONTROL room control
  • Exact measurement even at low airflow velocities
  • Any installation orientation even with static transducers
  • Closed blade air leakage tested to EN 1751, at least class 3
  • Casing air leakage tested to EN 1751, class C
  • Volume flow rate range 1:25




Optional equipment and accessories


  • Acoustic cladding for the reduction of case-radiated noise
  • Secondary silencer Type CA, CS or CF for the reduction of air-regenerated noise
  • Hot water heat exchanger Type WL and electric air heater Type EL for reheating the airflow

leer más

layer

Type TVT



Rectangular VAV terminal units for standard applications regarding the supply air or extract air control in variable air volume systems where low-leakage shut-off is required

  • For volume flow rate ranges up to 21,000 m³/h or 5,800 l/s
  • Suitable for the control of volume flow rate, room pressure or duct pressure
  • Electronic control components for different applications (Easy, Compact, Universal, and LABCONTROL)
  • High control accuracy
  • Suitable for airflow velocities up to 10 m/s
  • Closed blade air leakage to EN 1751, class 3
  • Casing air leakage to EN 1751, class C


Optional equipment and accessories

  • Acoustic cladding for the reduction of case-radiated noise
  • Secondary silencer Type TX for the reduction of air-regenerated noise
  • Hot water heat exchanger Type WT for reheating the airflow

leer más

layer

Type TVM



VAV dual duct terminal units for dual duct systems with variable volume flows in buildings with demanding acoustic requirements

  • Individual temperature control for each room or zone
  • Highly effective integral attenuator
  • Electronic control components for different applications (Compact and Universal)
  • Suitable for airflow velocities up to 13 m/s
  • Closed blade air leakage to EN 1751, class 4
  • Casing air leakage to EN 1751, class A


Optional equipment and accessories

  • Acoustic cladding for the reduction of case-radiated noise
  • Secondary silencer Type TS for the reduction of air-regenerated noise

leer más

layer

Type TVR



Circular VAV terminal units for standard applications regarding the supply air or extract air control in variable air volume systems

  • Suitable for the control of volume flow rate, room pressure or duct pressure
  • Electronic control components for different applications (Easy, Compact, Universal, and LABCONTROL)
  • High control accuracy even with upstream bend (R = 1D)
  • Suitable for airflow velocities up to 13 m/s
  • Closed blade air leakage to EN 1751, class 4
  • Casing air leakage to EN 1751, class C


Optional equipment and accessories

  • Acoustic cladding for the reduction of case-radiated noise
  • Secondary silencer Type CA, CS or CF for the reduction of air-regenerated noise
  • Hot water heat exchanger Type WL and electric air heater Type EL for reheating the airflow

leer más

layer

Type TVJ



Rectangular VAV terminal units for standard applications regarding the supply air or extract air control in variable air volume systems

  • For volume flow rate ranges up to 36,000 m³/h or 10,000 l/s
  • Suitable for the control of volume flow rate, room pressure or duct pressure
  • Electronic control components for different applications (Easy, Compact, Universal, and LABCONTROL)
  • High control accuracy
  • Suitable for airflow velocities up to 10 m/s
  • Casing air leakage to EN 1751, class B


Optional equipment and accessories

  • Acoustic cladding for the reduction of case-radiated noise
  • Secondary silencer Type TX for the reduction of air-regenerated noise
  • Hot water heat exchanger of Type WT for reheating the airflow

leer más
