TR2

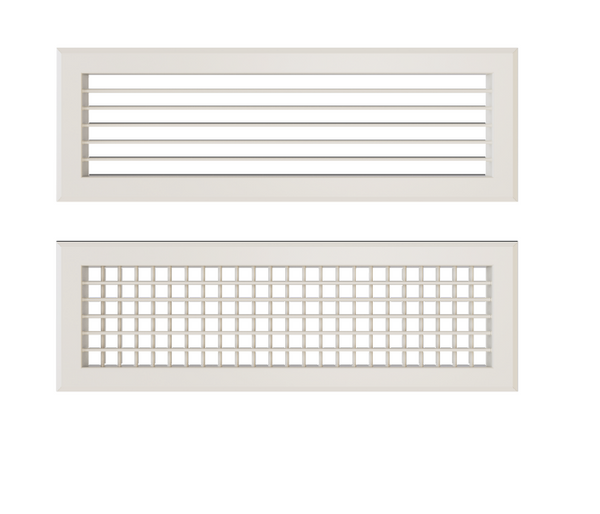

VENTILATION GRILLE, MADE OF SHEET STEEL, WITH INDIVIDUALLY ADJUSTABLE BLADES

The high-quality ventilation grille blends perfectly into any room.

  • Suitable for comfort and industrial areas for walls, sills, circular or rectangular air ducts
  • Single piece available in the nominal sizes 225 × 75 to 2025 × 525 mm
  • Adjustable blades for air direction control
  • Easy volume flow rate balancing thanks to various attachments
  • Simple mounting options for quick and easy installation
  • Available in various RAL Classic or NCS colours as well as with a galvanised surface


Options

  • Ball impact protection
  • Filter element
  • Attachment for flow channel
  • Linear run section
Product successfully added to cart

General information

Application

  • Ventilation grille Type TR2 as air diffuser (supply and extract air) for comfort zones and industrial zones
  • Directed supply air flow for mixed flow ventilation
  • Blades are adjustable to meet different local requirements
  • For constant and variable volume flows
  • For supply air to room air temperature differences from –12 to +4 K
  • For installation in walls, sills, circular or rectangular air ducts


Special characteristics

  • Individually adjustable blades
  • Countersunk hole, concealed screw fixing with or without installation subframe, unperforated front border without factory-fitted mounting option
  • Filter element for extract grille optional


Nominal sizes

Width [mm]

225 - 2025

Height [mm]

75 - 525

Grille for installation into circular ducts (R/RA versions)

Width [mm]

225 - 1225

Height [mm]

75, 125, 225

Variants

  • Horizontal, vertical or vertical and horizontal blade arrangements
  • Ball impact protection especially for installation in sports centres
  • Linear run section consisting of end and centre sections that are assembled on site
  • Grille for wall, sill and duct installation or for pipe installation
  • Concealed screw fixing with and without installation subframe
  • Countersunk hole in front border
  • Non-perforated front border, without factory-fitted mounting option


Attachments

  • Volume flow rate balancing on site
  • AG: Damper element with opposed action blades
  • AS: Hit and miss damper (parallel slide damper)
  • SAS: Slanted hit and miss damper


Parts and characteristics

  • Front border made of flanged profile
  • Individually adjustable, horizontal and / or vertical blades
  • Perimeter seal, factory-fitted
  • Vertical centre mullion for nominal widths over 625 mm


Accessories

  • Filter element for extract grille
  • Installation subframe


Construction features

  • Front frame profile 25 x 40 mm with bevelled edge to cover the installation opening
  • Profiled blade, manually adjustable
  • Fixed connection between attachment and ventilation grille via screw connection

Suitable air duct diameters

Ø100 - 2000 mm

Note: The possible air duct diameters are reduced depending on the grille height.

Material

  • Galvanised steel front border
  • Galvanised steel blades
  • PES filter
  • Foam seal


Surfaces

  • Front border and blades without coating (galvanised steel)
  • Front border and blades powder-coated in RAL 9010 pure white, GU50
  • Front border and blades powder-coated according to RAL
  • CLASSIC colour palette GU70
  • Front border and blades powder-coated according to NCS


Maintenance

  • Low maintenance as construction and materials are not subject to wear and tear
  • Inspection and cleaning according to VDI 6022
  • Standards and guidelines
  • Sound power level of the air-regenerated noise measured according to EN ISO 5135
  • Filter class ISO Coarse 45% according to ISO 16890

Información técnica

  • FUNCTION
  • TECHNICAL DATA
  • SPECIFICATION TEXT
  • ORDER CODE
Ventilation grilles are air terminal devices for the supply air and extract air of ventilation and air conditioning systems. They direct the supply air into the room. Ventilation grilles with adjustable blades allow for adapting the discharge direction to the local conditions. The result is a mixed flow ventilation in comfort zones and industrial zones, with good overall room ventilation. Due to induction, the airflow velocity of the supply air flow decreases with increasing distance from the ventilation grille. The distance at which the airflow velocity reaches a certain defined value, e.g.
0.35 m/s, is called throw distance. The supply air flow from wall grilles that are arranged close the ceiling achieves a greater throw distance than a comparable free jet (without ceiling influence), due to the ceiling effect. Single grilles, groups of grilles and linear run sections all achieve different throw distances. In cooling mode, it is necessary to consider the jet deflection towards the occupied zone, which increases as the supply air to room air temperature difference increases and the discharge velocity decreases. In heating mode, the supply air jet is deflected towards the ceiling. This has no negative effect on the airflow velocity in the occupied zone, but it may affect the overall ventilation of the room.

Nominal sizes

225 × 75 to 2025 × 525 mm

Minimum volume flow rate

11 – 1,111 l/s or 40 – 4,000 m³/h

Maximum volume flow rate, with LWA max. 40 dB(A)

without attachments

53 - 3,056 l/s or 189 - 11,000 m³/h

Supply air temperature

-12 to +4 K

Volume flow rate indication for single grilles (undivided construction) for supply air.

The customised sizing of the ventilation and acoustic data for the different variants is possible with our free Easy Product Finder design programme.

Geometric free area (blade arrangement VH, HV) A [m2]

H/B

225

325

425

525

625

825

1025

1225

1425

1625

1825

2025

75

0.008

0.012

0.015

0.019

0.023

0.031

0.039

0.046

0.054

0.062

0.069

0.077

125

0.015

0.023

0.031

0.039

0.046

0.062

0.077

0.092

0.108

0.123

0.139

0.154

225

0.031

0.046

0.062

0.077

0.092

0.123

0.154

0.185

0.216

0.246

0.277

0.308

325

0.069

0.092

0.115

0.139

0.185

0.231

0.277

0.323

0.37

0.416

0.462

425

0.246

0.308

0.37

0.431

0.493

0.554

0.616

525

0.385

0.462

0.539

0.616

0.693

0.77


Geometric free area (blade arrangement V) A [m2]

H/B

225

325

425

525

625

825

1025

1225

1425

1625

1825

2025

75

0.008

0.012

0.016

0.02

0.024

0.032

0.04

0.048

0.056

0.063

0.071

0.079

125

0.016

0.024

0.032

0.04

0.048

0.063

0.079

0.095

0.111

0.127

0.143

0.159

225

0.032

0.048

0.063

0.079

0.095

0.127

0.159

0.19

0.222

0.254

0.285

0.317

325

0.071

0.095

0.119

0.143

0.19

0.238

0.285

0.333

0.381

0.428

0.476

425

0.254

0.317

0.381

0.444

0.508

0.571

0.634

525

0.397

0.476

0.555

0.634

0.714

0.793

Geometric free area (blade arrangement H) A [m2]

H/B

225

325

425

525

625

825

1025

1225

1425

1625

1825

2025

75

0.008

0.012

0.016

0.021

0.025

0.033

0.041

0.049

0.057

0.066

0.074

0.082

125

0.016

0.025

0.033

0.041

0.049

0.066

0.082

0.098

0.115

0.131

0.148

0.164

225

0.033

0.049

0.066

0.082

0.098

0.131

0.164

0.197

0.23

0.262

0.295

0.328

325

0.074

0.098

0.123

0.148

0.197

0.246

0.295

0.344

0.394

0.443

0.492

425

0.262

0.328

0.394

0.459

0.525

0.59

0.656

525


0.41

0.492

0.574

0.656

0.738

0.82

Effective air inflow area supply air (blade arrangement VH, HV) A [m2]

H/B

225

325

425

525

625

825

1025

1225

1425

1625

1825

2025

75

0.007

0.011

0.015

0.019

0.022

0.03

0.037

0.045

0.052

0.06

0.067

0.075

125

0.015

0.022

0.03

0.037

0.045

0.06

0.075

0.09

0.105

0.12

0.135

0.15

225

0.03

0.045

0.06

0.075

0.09

0.12

0.15

0.18

0.21

0.24

0.27

0.3

325

0.067

0.09

0.112

0.135

0.18

0.225

0.27

0.315

0.36

0.405

0.45

425

0.24

0.3

0.36

0.42

0.48

0.54

0.6

525

0.375

0.45

0.525

0.6

0.675

0.75

Effective air inflow area supply air (blade arrangement V) Aeff [m2]

H/B

225

325

425

525

625

825

1025

1225

1425

1625

1825

2025

75

0.008

0.012

0.015

0.019

0.023

0.031

0.039

0.046

0.054

0.062

0.07

0.077

125

0.015

0.023

0.031

0.039

0.046

0.062

0.077

0.093

0.108

0.124

0.139

0.154

225

0.031

0.046

0.062

0.077

0.093

0.124

0.154

0.185

0.216

0.247

0.278

0.309

325

0.07

0.093

0.116

0.139

0.185

0.232

0.278

0.324

0.371

0.417

0.463

425

0.247

0.309

0.371

0.433

0.494

0.556

0.618

525

0.386

0.463

0.541

0.618

0.695

0.772


Effective air inflow area supply air (blade arrangement H) A [m2]

H/B

225

325

425

525

625

825

1025

1225

1425

1625

1825

2025

75

0.008

0.012

0.016

0.02

0.024

0.032

0.04

0.048

0.056

0.064

0.072

0.08

125

0.016

0.024

0.032

0.04

0.048

0.064

0.08

0.096

0.112

0.128

0.144

0.16

225

0.032

0.048

0.064

0.08

0.096

0.128

0.16

0.192

0.224

0.256

0.288

0.319

325

0.072

0.096

0.12

0.144

0.192

0.24

0.288

0.335

0.383

0.431

0.479

425

0.256

0.319

0.383

0.447

0.511

0.575

0.639

525

0.399

0.479

0.559

0.639

0.719

0.799

Effective air inflow area extract air (blade arrangement V) A [m2]

H/B

225

325

425

525

625

825

1025

1225

1425

1625

1825

2025

75

0.006

0.009

0.011

0.014

0.017

0.023

0.028

0.034

0.04

0.045

0.051

0.057

125

0.011

0.017

0.023

0.028

0.034

0.045

0.057

0.068

0.079

0.091

0.102

0.113

225

0.023

0.034

0.045

0.057

0.068

0.091

0.113

0.136

0.159

0.181

0.204

0.227

325

0.051

0.068

0.085

0.102

0.136

0.17

0.204

0.238

0.272

0.306

0.34

425

0.181

0.227

0.272

0.318

0.363

0.408

0.454

525

0.283

0.34

0.397

0.454

0.51

0.567

Effective air inflow area extract air (blade arrangement H) A [m2]

H/B

225

325

425

525

625

825

1025

1225

1425

1625

1825

2025

75

0.006

0.009

0.012

0.015

0.018

0.023

0.029

0.035

0.041

0.047

0.053

0.059

125

0.012

0.018

0.023

0.029

0.035

0.047

0.059

0.07

0.082

0.094

0.106

0.117

225

0.023

0.035

0.047

0.059

0.07

0.094

0.117

0.141

0.164

0.188

0.211

0.235

325

0.053

0.07

0.088

0.106

0.141

0.176

0.211

0.246

0.281

0.317

0.352

425

0.188

0.235

0.281

0.328

0.375

0.422

0.469

525

0.293

0.352

0.41

0.469

0.528

0.586


This specification text describes the general properties of the product. Texts for variants can be generated with our Easy Product
Finder design programme.

Specification text
Ventilation grille as supply air or extract air diffuser for the ventilation of rooms in ventilation and air conditioning systems. Consisting of a front border with bevelled edge. Installation preferably in circular or square air ducts, and for wall mounting. Ready-to-install component, consisting of a front border and individually adjustable, vertical and/or horizontal blades. Customised aerodynamic and acoustic design with web configurator.


Material
  • Galvanised steel front border
  • Galvanised steel blades
  • PES filter
  • Foam seal


Surfaces
  • Front border and blades without coating (galvanised steel)
  • Front border and blades powder-coated in RAL 9010 pure white, GU50
  • Front border and blades powder-coated according to RAL CLASSIC colour palette GU70
  • Front border and blades powder-coated according to NCS


Nominal sizes
Width [mm]
225 - 2025
Height [mm]
75 - 525
Grille for installation into circular ducts (R/RA versions)
Width [mm]
225 - 1225
Height [mm]
75, 125, 225


Technical data
Design-specific


Standards and guidelines
  • Sound power level of the air-regenerated noise measured according to EN ISO 5135
  • Filter class ISO Coarse 45% according to ISO 16890


Variants
  • Horizontal, vertical or vertical and horizontal blade arrangements
  • Ball impact protection especially for installation in sports centres
  • Linear run section consisting of end and centre sections that are assembled on site
  • Grille for wall, sill and duct installation or for pipe installation
  • Concealed screw fixing with and without installation subframe
  • Countersunk hole in front border
  • Non-perforated front border, without factory-fitted mounting option


Accessories
  • Filter element for extract grille
  • Installation subframe


Equivalence criteria
  • Galvanised sheet steel
  • Adjustable air pattern
  • Grille available in various colours
  • Optional air direction control via factory-set blades
  • Optional various mounting kits for restricting and balancing the grilles
  • Various mounting options, customised for standard installation situations
  • Ventilation data and acoustic data verified by laboratory measurements
  • Dust and scratch protection thanks to individual packaging


Manufacturer of the product
TROX GmbH


Type
TR2
TR2

V/425 x 225/AS/EF/VSER//P1 - RAL 9016
|||||||||||||
1234567 8910111212
1 Type
TR2 Ventilation grille

2 Variant

No entry: single grille
E End section
M Middle section

3 Construction

No entry: installation into walls, sills or ducts
R Installation into circular ducts (large duct diameters)
RA Installation into circular ducts with small Ø and additional bend (small duct diameters)

4 Front frame

No entry: profile 25 × 40 mm with bevelled edge


5 Blade arrangement

V Vertical front blade
H Horizontal front blade
VH Vertical front blade, horizontal air direction control
HV Horizontal front blade, vertical air direction control



6 Ball impact protection grille
No entry required: without ball impact protection
BS With ball impact protection without fixing holes
BL With ball impact protection with fixing holes

7 Nominal size [mm]
Specify width × heigh


8 Attachment

Suitable for supply air and extract air
No
entry: without attachment (front grille only)
AG Damper blade, opposed action blades
AS Hit and miss damper (parallel slide damper)

Only suitable for supply air
SAS Slanted hit and miss damper

9 Filter
Suitable for extract air
No entry: without filter element
EF with filter element (not with SAS attachment )


10 Fixing
No entry required: countersunk holes in the front border
SP Concealed screw fixing, for installation without installation subframe
VS Concealed screw fixing, for installation with installation subframe
NO No factory-fitted fixing option


11 Installation subframe
Only with VS fixing
No entry required: without installation subframe
ER With installation subframe


12 Air discharge
Only with V, VH blade arrangement
No entry: diverging 0°
44 Air direction control 44°
84 Air direction control 84°
110 Air direction control 110°
140 Air direction control140
GEG Opposed


13 Surface
No entry: Galvanised steel
P0 Powder-coated, RAL 9010 (pure white), GU 50
P1 Powder-coated, specify RAL CLASSIC colour, gloss level
PS powder-coated, specify NCS colour and gloss level


Order example: TR2-R-V/425×225/AS/EF/VS-ER/P1-RAL9016

TypeTR2 – Ventilation grille
VariantSingle grille
ConstructionInstallation into circular ducts (large duct diameters)
Front frame Profile 25 x 40 mm with bevelled edge
Blade arrangement Vertical front blade
Ball impact resistance Without ball impact protection
Nominal size [mm]Width 425, height 225
AttachmentHit and miss damper (parallel slide damper)
Filterwith filter element
FixingConcealed screw fixing, for installation with installation subframe
Instalation subframe With installation subframe
Air dischargeAir direction control 0°
SurfacePowder-coated, RAL 9016 (traffic white), GU 70

Descargas

Información sobre el producto

Certificados

Manuales de funcionamiento

production {"X-Frame-Options"=>"SAMEORIGIN", "X-XSS-Protection"=>"1; mode=block", "X-Content-Type-Options"=>"nosniff", "X-Download-Options"=>"noopen", "X-Permitted-Cross-Domain-Policies"=>"none", "Referrer-Policy"=>"strict-origin-when-cross-origin", "Strict-Transport-Security"=>"max-age=31536000; includeSubDomains", "Content-Type"=>"text/html; charset=utf-8"}

Compartir la página

Recomendar la página

La página puede ser recomendada compartiendo este enlace.

Los campos marcados con un asterísco (*) son de obligado cumplimiento.

Contacto

¡Gracias por su mensaje!

Su recomendación ha sido remitida con éxito.

Contacto

Estamos aquí para ayudarle

Por favor indique el asunto de su consulta y sus datos de contacto.
Tel.: +34 976 50 02 50 | Fax: +34 976 50 09 04

Adjunto (máx. 10MB)

Los campos marcados con un asterísco (*) son de obligado cumplimiento.

Contacto

¡Gracias por su mensaje!

Su mensaje se ha recibido con éxito en el buzón del SAT de TROX.
En seguida nos pondremos en contacto con usted.
En caso de que disponga de cuestiones adicionales, puede contactar con nosotros en: Tel.: +34 976 50 02 50 | Fax: +34 976 50 09 04

Contacto

Estamos aquí para ayudarle

Por favor indique el asunto de su consulta y sus datos de contacto.
Tel.: +34 976 50 02 50 | Fax: +34 976 50 09 04

Adjunto (máx. 10MB)

Los campos marcados con un asterísco (*) son de obligado cumplimiento.

Contacto

¡Gracias por su mensaje!

Su mensaje se ha recibido con éxito en el buzón del SAT de TROX.
En seguida nos pondremos en contacto con usted.
En caso de que disponga de cuestiones adicionales, puede contactar con nosotros en: Tel.: +34 976 50 02 50 | Fax: +34 976 50 09 04
